Parking Lot Striping and ADA Stall Layout in Riverside, CA
Elite Riverside Asphalt handles parking lot striping across Riverside: restriping over faded lines, full line striping and pavement markings after a layout change, ADA accessible stalls, and fire lane marking. The calls sound alike. Nobody can follow the lines, the stall count no longer matches what the tenant leased, and the accessible stalls date from before the current code, which is the part that draws an inspection or a demand letter.
Four documents decide the paint. The 2010 ADA Standards for Accessible Design set the count, one accessible space in a lot of 25 or fewer, and one in every six accessible spaces or fraction thereof van accessible. California Building Code Chapter 11B raises the car accessible stall to 108 inches, or 9 feet. California Fire Code Chapter 5 covers fire lanes and the California MUTCD covers the rest. We spray federal specification waterborne traffic paint, C-32 Parking and Highway Improvement work by classification. Call [PHONE] for a free measurement of your lot.
Get a Free Asphalt Paving Quote
Square footage, base condition, thickness and tear-off decide most of your price. Tell us the property address, the job type (driveway, parking lot or repair) and a rough size, and we call back within one business day to schedule a free on-site measurement.
Parking Lot Striping and Pavement Marking Services We Handle in Riverside
Parking Lot Restriping and Faded Line Renewal
A parking lot restriping puts the same grid back on a surface that still shows where it was. We power sweep first, because paint will not bond through dust and tire rubber, then shadow the existing lines so the new stripe covers the ghost rather than sitting beside it. Stall lines go down at 4 inches wide at a 15 wet mil build, which lays about 320 lineal feet per gallon. Drive aisles, entrances and anywhere trucks turn get a second coat, since that is where tires scrub paint off first. Riverside works its markings harder than a coastal lot: 21.6 days a year at or above 100 F plus year round sun chalk waterborne paint from the top down. Plan on repainting every two years. A lot nobody can read costs you in arguments over stall counts with tenants, an accessible stall an inspector will not accept, and a fire lane the marshal will not approve.
New Lot Layout, Stall Count and Drive Aisle Design
Parking lot layout design starts with a tape measure, not a paint gun. Our standard commercial stall is 9 feet by 18 feet, with 8 by 18 for a compact row, and we hold about 24 feet of drive aisle for two way 90 degree parking and roughly 14 feet where the aisle runs one way. Angling the stalls to 60 or 45 degrees narrows the aisle a car needs to swing into a space, which is how a tight site buys circulation, and it costs you stalls per row. The accessible module is fixed: California sets a 108 inch by 216 inch car accessible stall, so the grid gets drawn around it rather than the other way around. On a new mat we wait. Waterborne paint should not go on uncured asphalt, and where a fresh surface has to be marked early the first pass is held to 8 wet mils. We snap the whole plan in chalk line and string and walk it with you before anything is sprayed.

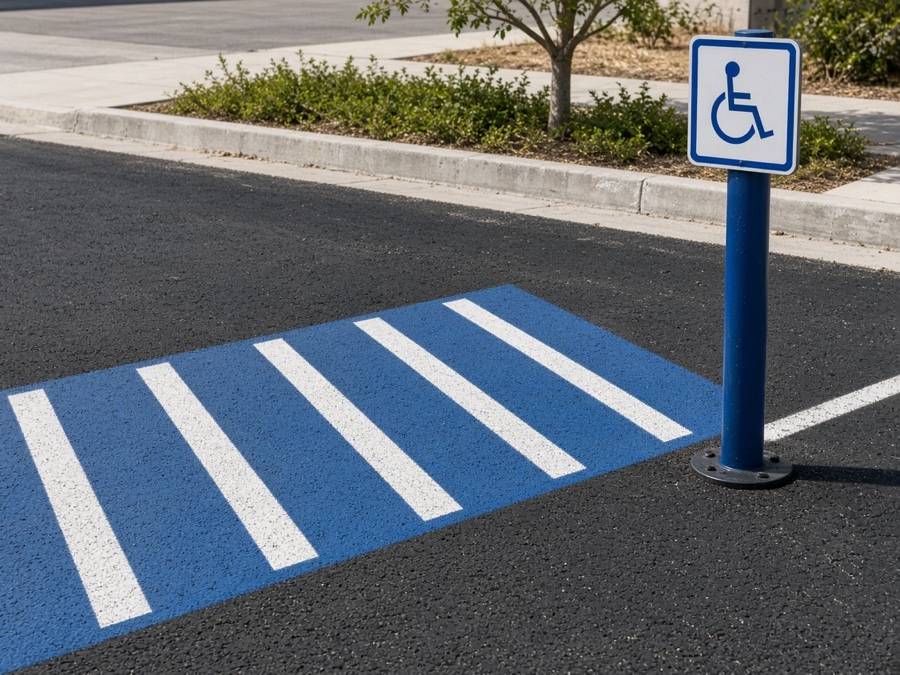

ADA Accessible Stall Striping and Access Aisles
An ADA compliant parking lot is counted first, then measured. The 2010 ADA Standards for Accessible Design put 4 accessible spaces on a lot of 76 to 100 spaces, 5 at 101 to 150, 9 at 401 to 500, and 2 percent of the total from 501 to 1,000. California Building Code Chapter 11B then sets the geometry. The car accessible stall is 108 inches, 9 feet, next to a 60 inch access aisle; a van stall is 144 inches, 12 feet, or 9 feet where its aisle is widened to 96 inches. The aisle carries a blue painted borderline, hatching no more than 36 inches on center, and NO PARKING in white letters not less than 12 inches high, with a 36 by 36 inch symbol of accessibility on the stall itself. Two details catch older lots. The federal floor allows a 96 inch stall that California does not, and no slope in the stall or aisle may exceed 1:48, which we shoot with a laser level before we paint because paint cannot fix grade.
ADA Parking Signs, Post Mounting and Accessible Route Marking
ADA parking signs are half the compliance. Each accessible stall gets a reflectorized sign carrying the symbol of accessibility on blue, at least 70 square inches, mounted so the bottom of the sign sits no lower than 60 inches above the ground, or 80 inches where it stands in a walking path. That height exists for one reason: lower than that and a parked SUV hides the sign. Below the symbol goes the Minimum Fine $250 wording, and van stalls add a Van Accessible plate. Each entrance also needs a tow away warning sign, 17 by 22 inches at minimum with lettering not less than 1 inch, naming where a towed vehicle is recovered. Where a post cannot be set through concrete we mount to a bollard or a wall at the same height. We then stripe the accessible route from the aisle to the door, and set truncated dome detectable warnings at the curb ramp, never inside the stall or the aisle.

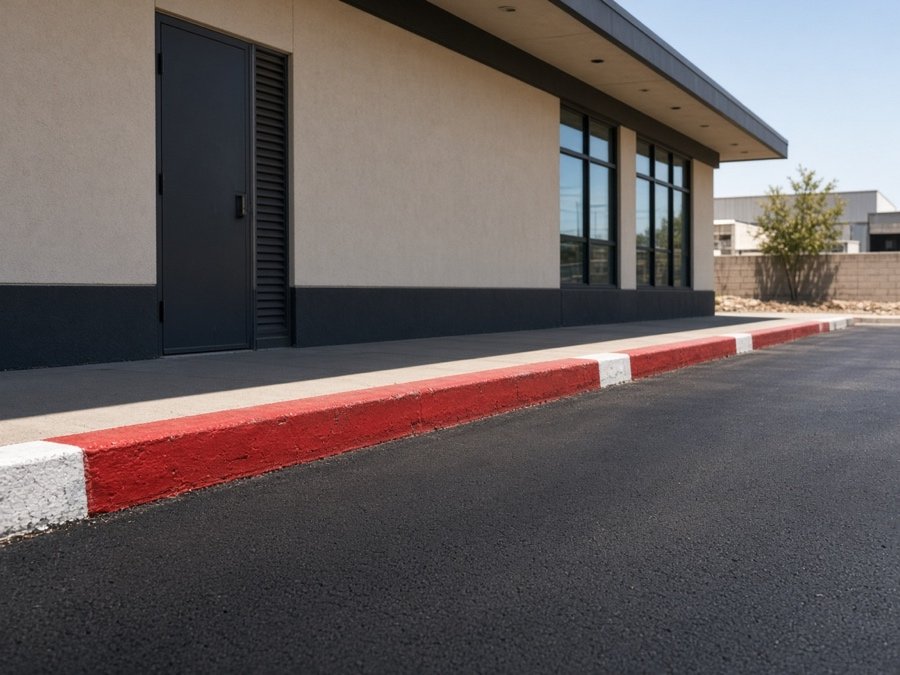

Fire Lane Striping and Curb Painting
Curb painting in a commercial lot is regulation, not decoration. California Fire Code Chapter 5 requires an unobstructed fire apparatus access road of at least 20 feet, 26 feet where a hydrant sits on it, with 13 feet 6 inches of vertical clearance and a surface that will carry apparatus up to 75,000 pounds. We paint the curb red and stencil NO PARKING FIRE LANE in white at the stroke height and repeat interval your local fire marshal calls for, and we let the marshal walk it and sign off before we call the paint final. Signage follows the same code: red letters on a white reflective background, 12 by 18 inches at minimum. The rest of the curb is a color code written into the vehicle code: red is no stopping, standing or parking; blue is disabled parking only; green is time limited; white is passenger loading; yellow is commercial loading for the time the local ordinance allows. Red curb with stenciling runs $3 to $7 per linear foot.
Crosswalks, Stop Bars and Directional Arrows
Crosswalk striping follows the California MUTCD, which sets white markings, a marked crossing at least 6 feet wide, and transverse lines 12 to 24 inches across. A plain transverse crosswalk is two lines and it disappears at dusk. A continental, or ladder, crossing uses at least three longitudinal bars, each 12 to 24 inches wide with 12 to 60 inches between them, and we stagger that spacing so the bars fall between wheel paths. At a busy retail frontage that is the pattern worth paying for: it reads from further back and it wears more slowly. Stop bars are solid white, 12 to 24 inches wide, set at least 4 feet ahead of the nearest crosswalk line. Drive aisles then get directional arrows, ONE WAY and DO NOT ENTER legends and a speed legend where sight lines are short. We lay all of it in one pass with the accessible route, because the walking path from those stalls to the door decides where the crossings belong.
Stencils, Stall Numbering and Reserved Space Lettering
Our parking lot stencils cover what an Inland Empire property actually orders: stall numbers for assigned tenant parking, RESERVED and VISITOR legends, COMPACT on the short rows, keep clear boxes at a loading zone or a trash enclosure, and custom cut logo or unit number plates. EV charging spaces get the plug legend inside a green field, published locally at $45 to $120 per space. Our standard legend letter is 12 inches tall, sprayed through a cut plate rather than freehanded, which keeps every character the same weight down a row and keeps overspray off the surrounding pavement. We chalk the legend positions and walk them before the first plate goes down, because a stencil sprayed in the wrong bay is a removal job. Numbering is the quiet moneymaker. On an apartment or self storage lot, a numbered stall ends the argument at the door instead of on the phone, and it gives your manager something to point at when a car has to be towed.
Old Line Removal and Full Lot Relayout
Parking lot striping removal becomes necessary the moment the new grid does not sit on top of the old one. Waterborne paint dries to about 8.7 mils of film, so a line you paint over is still standing on the surface. Black out paint is the cheap answer and the shortest lived: under Riverside sun the black coat weathers at a different rate than the pavement around it, and the old line ghosts back through within a season. Water blasting takes the film off cleanly with the lowest scarring risk. Shot blasting and grinding are faster on a large field and leave a texture you can see, which is why we keep them off show frontages. Relayouts come from three places: a tenant who needs more stalls, a drive through lane going in, or an accessibility upgrade. The last one usually moves the whole grid, because the accessible module's dimensions and its slope limit are not adjustable. If the surface is breaking up under the paint, that is asphalt repair and patching first.

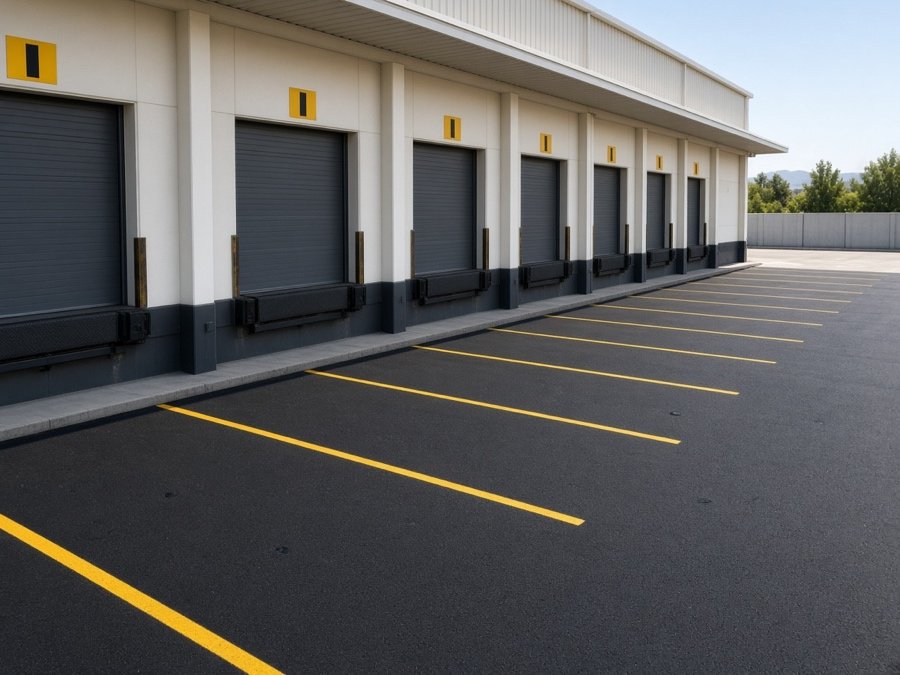

Warehouse Floor, Truck Court and Loading Dock Marking
Warehouse floor striping and truck court layout are their own trade. Outside, we paint trailer stalls to the tractor and trailer lengths your carriers actually run, number the dock positions so a driver can be told where to back, and hatch the keep clear zone in front of each door so a parked trailer never blocks the swing. Fire access rules do not relax on an industrial site, so the apparatus lane and hydrant clearance get laid out before the trailer stalls do, and fire equipment zones go in red, which under the vehicle code means no stopping at all. Inside, we mark to OSHA aisle guidance with safety yellow aisles, hatched pedestrian walkways and red equipment zones, laid out around the racking and the forklift turns rather than the walls. Sealed concrete takes a different coating system than an asphalt lot, so the interior gets its own material. We schedule around dock hours, usually nights or a weekend, because a truck court cannot close. New pavement out there is commercial paving and parking lots work.
Traffic Paint and Thermoplastic Options for Riverside Lots
Waterborne and Solvent Based Traffic Paint
We spray waterborne traffic paint meeting In-Lieu of Federal Specification TT-P-1952B, the SCAQMD compliant default here; solvent based product is reserved for surfaces it will not hold. We will not paint below 50 F or under the dew point. A drive aisle line gives about two seasons, a quiet stall line longer. Every gun gets cleaned and the tips gauged before a shift, because a worn tip fans the line wide.
Thermoplastic and Long Life Markings
Hot applied thermoplastic pavement marking is melted onto the asphalt; preformed shapes are torched down. It runs 2 to 3 times the cost of paint and lasts 3 to 5 times longer, which pays on fire lanes, crosswalks, arrows and entrance legends, not on a stall line. It bonds to asphalt but needs a primer on concrete. Glass beads in wet paint add night visibility; preformed tape needs no cure when the lot cannot close.
Our Striping Process, From Layout to Reopening the Lot
Site Measure, Stall Count Plan and Free Estimate
Our estimator walks the lot and measures usable square footage, the existing stall count, every entrance, the sign inventory, and the slope at each accessible stall, because slope is the one defect paint cannot fix. The written quote itemizes stalls, legends, signs and accessible upgrades on separate lines, so you can phase the work across budget years instead of buying it all at once.
Sweeping, Surface Prep and Traffic Control
We power sweep the whole lot and blow the layout lines clean before a gun comes off the truck. Paint bonds to what it touches, so dust, or a fresh asphalt sealcoating film that has not cured, means the line lifts with the first tire. We cone and barricade in halves so the lot stays open, and we run nights or weekends on occupied retail, which carries a 15 to 25 percent premium.

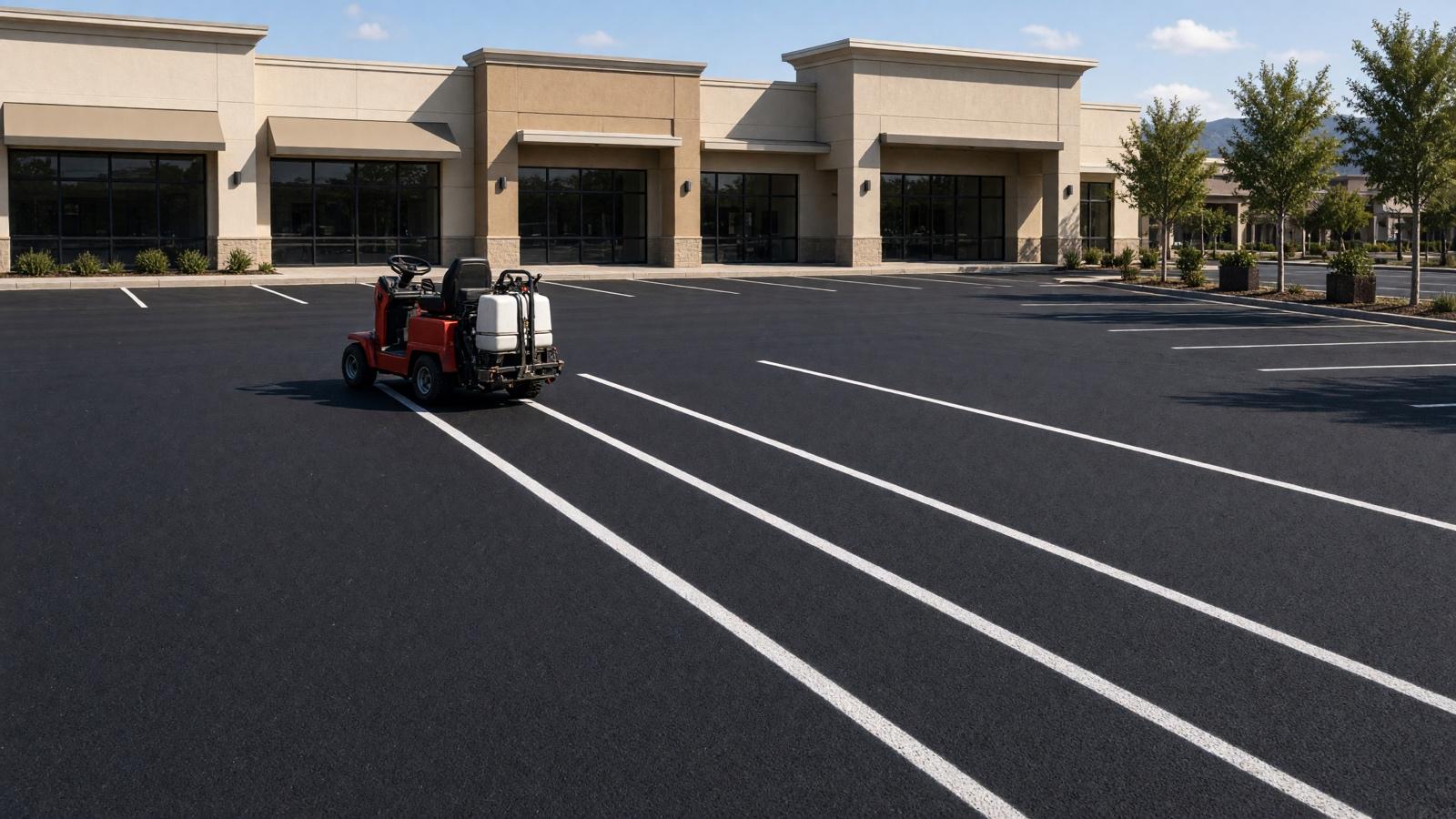

Application, Cure Time and Reopening the Lot
We run an airless striper, a walk behind for tight islands and a ride on for long runs. At 77 F and 50 percent humidity the paint is dry no pickup in about 45 minutes. A hot dry afternoon beats that; a damp winter morning takes far longer, and we will not spray under the dew point. Plan on reopening a section within two hours, full traffic the next morning.
Why Riverside Property Managers Choose Us for Parking Lot Striping
- California C-32 parking and highway improvement license class carried.
- General liability and workers compensation in force on every lot.
- Owned ride on striper, walk behind and full stencil library.
- ADA layout drawn and stall slope checked before any paint.
- Parking lot striping services run nights and weekends for tenants.
- Written striping warranty, and a callback within one business day.
What Affects the Price of Parking Lot Striping in Riverside
Five things move a striping quote: stall count and total linear footage, whether we are shadowing an existing grid or laying out a new one, how many accessible stalls and signs need bringing to current code, the paint or thermoplastic specified and how many coats it needs, and whether old markings have to be blasted or ground off first. Small lots also carry a mobilization minimum, because a handful of stalls needs the same truck, crew and traffic control as a full lot. Our asphalt paving cost guide carries the current Riverside numbers for each of those factors.
FAQs About Parking Lot Striping and ADA Layout
What are the ADA requirements for parking lot striping?
ADA parking lot striping answers to Building Code Chapter 11B on top of the federal standard: a 9 foot car accessible stall, a 5 foot aisle, a 12 foot van stall or 9 with an 8 foot aisle, a 36 by 36 inch symbol, a sign at 60 inches, no slope over 1:48.
How many accessible parking spaces does a lot need?
Federal Table 208.2 sets it by total spaces: 1 accessible space up to 25, 4 up to 100, 9 through 500, 2 percent from 501 to 1,000, then 20 plus 1 per additional 100. One in every six, or fraction thereof, must be van accessible, so one accessible stall must be van accessible.
How often do parking lots need to be restriped?
Every two to three years on a Riverside commercial lot, and most owners fold the restripe into the same visit as the seal. Heat, year round UV and traffic volume pull that in: a busy drive aisle or a drive through lane can look tired inside a single year.
How long does parking lot striping last?
Waterborne paint holds about two years on a drive aisle and longer on a quiet stall line, because film build and tire traffic decide it, not the calendar. Thermoplastic lasts 3 to 5 times as long as standard paint, which is why it goes on crosswalks and fire lanes rather than every stall.
How long does it take for parking lot striping to dry?
Dry to touch and dry no pickup are both about 45 minutes at 77 F and 50 percent relative humidity, per the paint's data sheet. Dry to traffic is longer: we reopen a section after roughly two hours in dry heat, and hold it overnight on a cool damp morning.
What does restriping a parking lot mean?
Restriping puts an existing grid back down; a first time layout draws that grid from measurements. The job is a power sweep, shadowing the old lines, stall lines and legends, accessible stalls and their aisles, arrows and curb work, and a walk of every sign before we leave.
Can you stripe your own parking lot?
Yes, on private property an owner can paint stall lines with a rented machine. No, not the parts that get reviewed. Accessible stalls, their aisles and signs, and fire lanes carry fixed code dimensions and a fire code official's sign off, and getting them wrong is a liability a rental contract does not cover.
Get a Free Parking Lot Striping Estimate in Riverside
Elite Riverside Asphalt handles parking lot striping and ADA stall layout for Riverside property owners and managers. Call [PHONE] for a free on-site measurement and an itemized quote that prices stalls, legends, signs and accessible upgrades separately, with the ADA layout drawn and the slope checked before any paint goes down.
